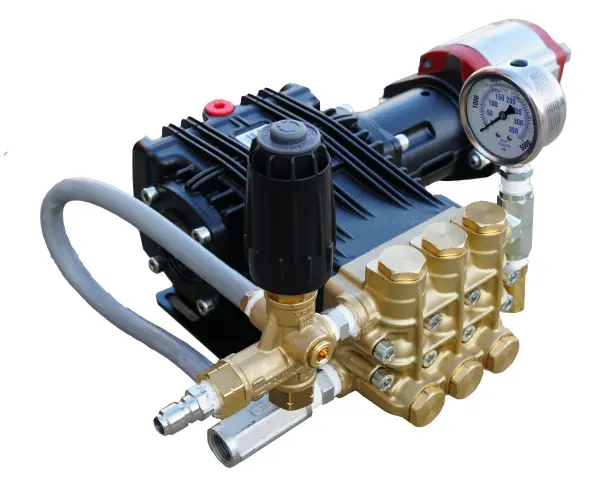

Base Mount Hydraulic Powered 4 gpm, 4000 psi Cold Water Pressure Washer

Click image to enlarge
Quantity:

Products UPC: 095879301679

Model Number: 404HYD

Hydraulic powered cold water pressure washers are compact and powerful. Using the hydraulic power source on your existing equipment to transform oil flow and pressure to water flow and pressure as an effective way to deliver cold water pressure washing power where you need it most. Required inlet oil flow is 12 gallons per minute at  2000 psi. Many times the equipment you are using needs cleaning on a daily basis. Tap into that power to keep the machinery clean as well. These machines are commonly used on paving, concrete, construction, mining and military equipment. Features include a high efficient hydraulic motor, triplex plunger pump with ceramic plungers and stainless steel valves protected by an unloader valve and secondary pop off valve. Trigger gun and quick change tips in 0, 15°,25°,40° and soap tip. Oil connections inlet and discharge are J.I.C. #10, Simple design for easy operation and maintenance. Required inlet oil flow is 12 gpm @ 2000 psi will create 4 gpm @ 4000 psi cleaning power.



404HYD Product Specifications

  • Water Type: Cold
  • Powered By: Hydraulic Motor
  • Pressure in PSI / Bar: 4000 psi
  • Flow Rate in GPM / LPM: 4 / 15.2
  • Required Oil Inlet Flow: 12 gpm
  • Pump Thermal Protection: Mechanical
  • Required Oil Inlet Pressure: 4000 psi
  • Max Pump Inlet Water Temp: 160° F
  • Hose Dimension: 50' x 3/8"
  • Ship Weight: 75
  • Product Dimensions: 10" x 12" x 10"
  • Mounting Type: Base Mount
  • UPC: 095879301679
