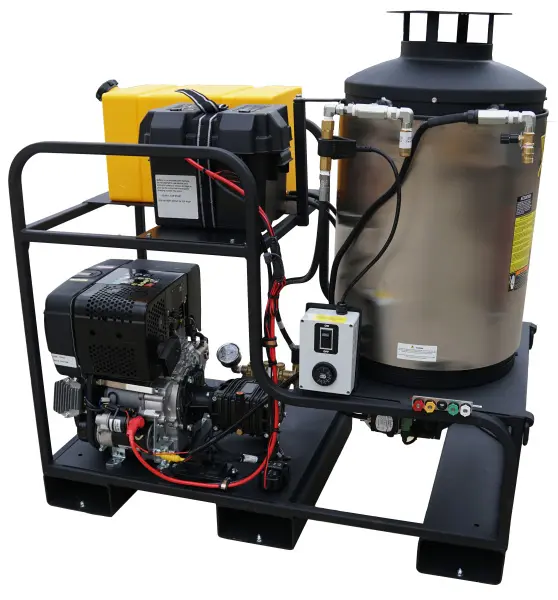

Deluxe Skid Mounted Diesel Fired Diesel Powered 4 gpm, 3000 psi Hot Water Pressure Washer

Click image to enlarge
Quantity:

Model Number: MCB3040D Hot P00797

Cam Spray MCB Series Skid Mount diesel hot water power washers are the best in the industry. These models are right at home in the worst applications you can find. Features include a Hatz Diesel 1B50E industrial air cooled diesel engine and triplex plunger pump with ceramic plungers and stainless steel valves  is protected by unloader valve and secondary pressure pop off. Burner system includes a rust free fuel tank, schedule 80 coil with stainless steel wrap, is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature 195° F. The skid is ready to be mounted on a flat bed truck or trailer and is equipped with heavy duty trigger gun with a dual wand with side handle valve that allows for user to switch from high pressure cleaning to detergent application and is equipped with quick change 0°,15°,25° and 40° nozzles. Group 24 battery it included.

MCB3040D Hot P00797 Product Specifications

  • Ship Weight: 750
  • Water Tank Capacity in US Gallons: n/a
  • Engine Fuel Tank Capacity: Shared 9 Gallon
  • Burner Fuel Tank Capacity: Shared 9 Gallon
  • Product Dimensions: 48" x 26" x 58"
  • Hose Dimension: 50' x 3/8" hose
  • Water Type: Hot
  • Powered By: Diesel Engine
  • Mounting Type: Skid
  • Flow Rate in GPM / LPM: 4 / 15.2
  • Horsepower: 19.9 / 14.6 kw
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 140° F
  • Engine Manufacturer: Hatz Diesel
  • Heated By: Diesel Fuel
  • Burner Fuel Type: Diesel Fuel
  • Burner Stack Dimension: 8"
  • Pressure in PSI / Bar: 3000 / 207
