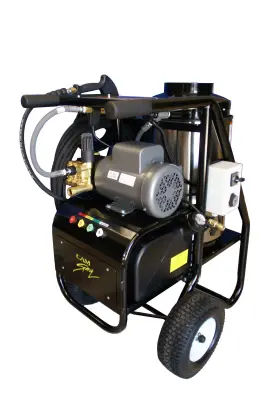

Portable Diesel Fired Electric Powered 3 gpm, 1500 psi Hot Water Pressure Washer

Click image to enlarge
Quantity:

Products UPC: 095879300047

Model Number: 1500SHDE

The SH models offer economical solutions to your hot water pressure washing applications. The electric diesel pressure washer frame is equipped with hose and wand holder and can be rolled around easily on two 13" wheels. Be sure to look at the 50 ft. hose reel that can be added to your 1500 psi pressure washer, as it easily mounts in the female socket on the machine frame. Electric diesel pressure washer features include an industrial motor that is totally enclosed and thermal overload protected, industrial triplex plunger pump with ceramic plungers and stainless steel valves is equipped with low pressure chemical injection and system is protected by unloader valve and secondary pressure pop off. Burner system includes a rust free fuel tank, schedule 80 coil with stainless steel wrap, is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature 195° F. The 1500 psi pressure washer has a heavy duty trigger gun with a dual wand with side handle valve allows for user to switch from high pressure cleaning to detergent application and is equipped with quick change 0°,15°,25° and 40° nozzles.

1500SHDE Product Specifications

  • Water Type: Hot
  • Powered By: Electric Motor
  • Mounting Type: Cart
  • Flow Rate in GPM / LPM: 3 / 11.4
  • Horsepower: 3
  • Product Dimensions: 34" x 27" x 47"
  • Voltage / Amperage / Phase: 230 Volt / 20 Amp / 1
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 140° F
  • Hose Dimension: 50' x 3/8"
  • Power Cord: 35' with GFCI
  • Ship Weight: 355
  • Heated By: Diesel Fuel
  • Burner Fuel Tank Capacity: 5 Gallon
  • Burner Fuel Type: Diesel Fuel
  • Burner Stack Dimension: 8"
  • Pressure in PSI / Bar: 1500 / 103.5
  • UPC: 095879300047
